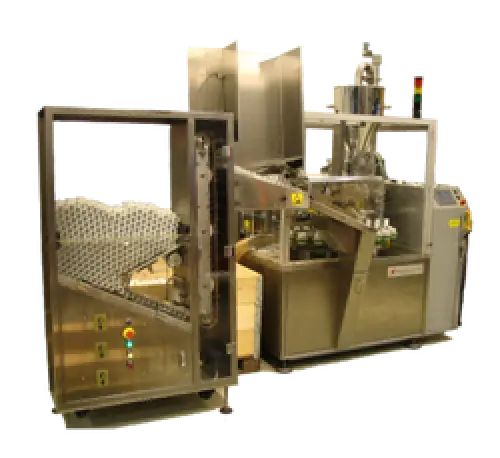

The Tube Elevator machine is used to feed empty tubes into your automatic tube sealing machines. This feeder handles plastic, laminate, and aluminum tubes, efficiently transferring them from left to right. It can be integrated with the Universal Tube Filling Machine (80 tubes/min) , Norden tube filling machines, and other similar models.

Key features of the Tube Elevator machine:

• Constructed from durable 304 stainless steel
• Throughput rate up to 100 tubes/min
• PLC controller with photoelectric sensor for speed control
• Quick adjustments for different tube sizes

Technical Specifications:

• Compatible products: plastic tubes, aluminum tubes, laminate tubes
• Tube diameter: 18–60 mm
• Tube length: 70–235 mm
• Footprint: 1050 × 450 × 1720 mm
• Weight: 165 kg

Required Utilities:

• Total power: 120W
• Voltage: 220V

Applications:

Built for industrial reliability, the Tube Elevator machine streamlines the feeding process in tube sealing and filling operations. Capable of feeding up to 100 tubes per minute, it supports a variety of automatic sealing machine brands and configurations.

Feel free to reach out and contact us with any questions.
