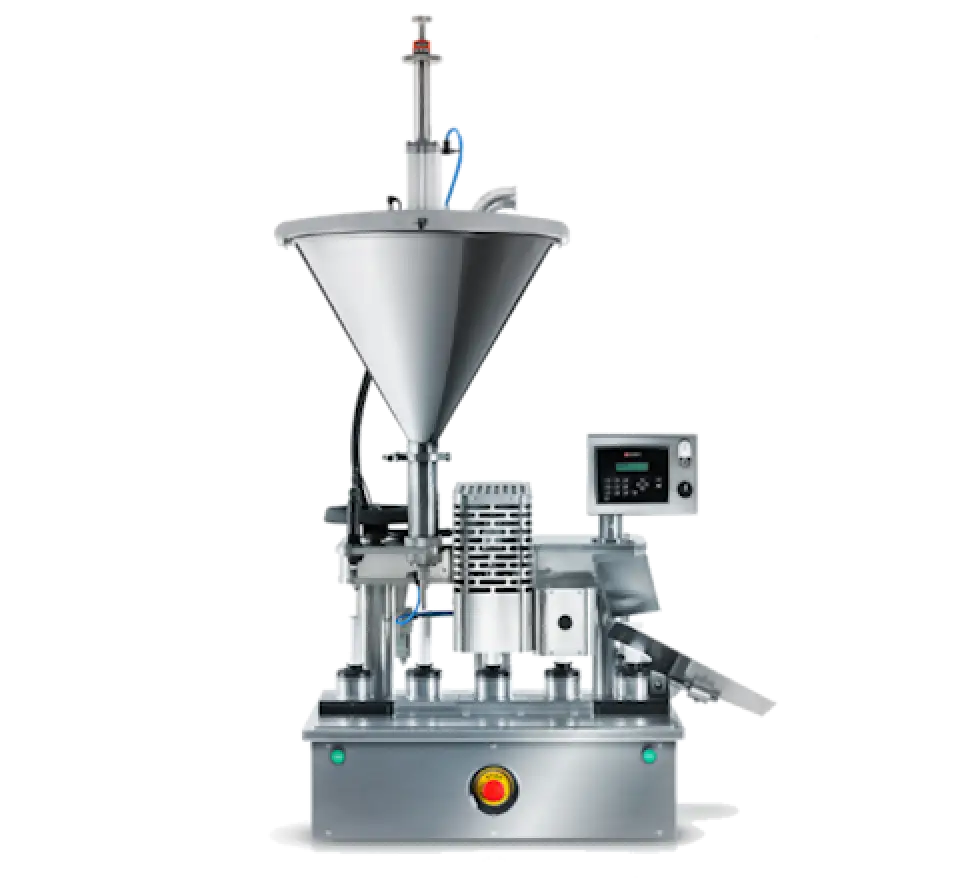

Tabletop Tube Filling and Crimping Machine (10 tubes/min)

Semi-automatic aluminum tube filling and crimping machine is used to crimp (close) and fill aluminum tubes with liquids, gels or creams, stamp date / batch number.

Key features of the semi-automatic tube filling and crimping machine:

• Semi-automatic aluminum tube filling and crimping machine is made of stainless steel AISI 304
• All elements having contact with product are made of acid-proof steel AISI 316
• Electronic control of crimping parameters and process
• Output: up to 10 tubes / minute (depends on time of tube filling)
• Diameter of tubes (possible options): ø13 mm – ø50 mm
• Dosing volume (volume of the cylinder of the filling machine): 3 – 250 ml
• Length (height) of tubes: adjusted in the range 50 – 250 mm
• Filling accuracy error:
  • 15-250 ml < ± 1 % of volume
  • 3-15 ml < ± 3 % of volume
• Single coding with set of fonts included

Click for Machine Model Comparison

The budget tube filling and crimping machine is equipped with:

• Unitronics PLC
• MetalWork and Camozzi pneumatic elements
• Date and batch number stamping device
• Digital volume indicator
• Sensor for liquid level in reservoir allowing for automatic filling up
• Production output counter

Level of automation of the small tube filling and crimping machine:

The operator loads empty tubes and positions them manually with the help of a laser indicator. He then slides all tubes manually and presses two start buttons to initiate operation. The small aluminum tube filler and crimper automatically fills, closes and stamps date / serial number on tubes. The machine ejects closed tubes automatically.

Possible application of the cheap tube filling and crimping machine:

The semi-automatic aluminum tube filling and crimping machine is used for packing of cosmetic products, pharmaceutical products, CBD products, chemicals, food products, etc. into tubes. The budget aluminum tube filling and crimping machine is designed to handle small and medium size batches / production lots / jobs. It can be used for regular production, for sampling or for labs.
